BMW X3 F25 (2011-2017) – fuse box
BMW X3 F25 – fuse box diagram
Year of production: 2011, 2012, 2013, 2014, 2015, 2016, 2017.
The scheme of the fuse box
Assignment of fuses
The arrangement of the fuses may differ!
Fuse box in the trunk
Location of the fuse box
Open the cover on the right side of the skirting board and remove the acoustic insulation.

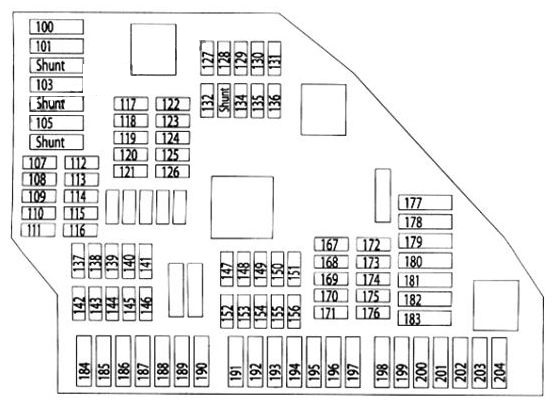

The scheme of the fuse box
Assignment of fuses
The arrangement of the fuses may differ!

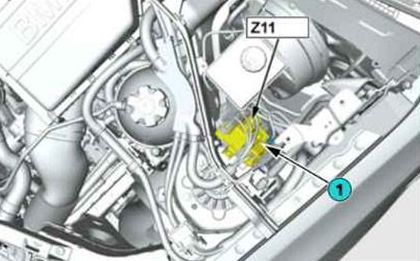

Power distribution module
It is located in the engine compartment on the left side.
It also includes some relays, for example for towed equipment.
Meaning of the BMW fuse symbols
The list will be updated on a regular basis. If you have any suggestions, leave a comment or write an e-mail!
| No. | Symbol | Description |
| 1 |  |
ABS (anti-lock brake system),DSC (dynamic stability control) |
| 2 |  |
Steering column function control module |
| 3 |  |
Trailer module, tow bar |
| 4 |  |
Head-Up Display (HUD) |
| 5 |  |
START-STOP system |
| 6 |  |
Electric mirrors |
| 7 |  |
Air suspension system |
| 8 |  |
Transmission;DSC – dynamic stability control;
SMG – Sequential Manual Gearbox. |
| 9 |  |
Headlamps;Rain sensor;
Light sensor; Electronic ride height control. |
| 10 |  |
Light module |
| 11 |  |
CD changer;Can Gateway module. |
| 12 |  |
Alarm |
| 13 |   |
Parking sensors;
Home link (garage door opener) |
| 14 |  |
Electric fan |
| 15 |  |
horn |
| 16 |  |
Door module;Automatic soft closing. |
| 17 |  |
Electric windows |
| 18 |  |
Heated seats |
| 19 |  |
Seat adjustment |
| 20 |  |
Seatbelts |
| 21 |  |
OBD |
| 22 |  |
Heating;Independent parking heater.
Windshield heating. |
| 23 |  |
Cruise control |
| 24 |  |
Rear wiper relay |
| 25 |  |
Rear window defogger (heated rear window) |
| 26 |  |
Washer fluid heater |
| 27 |  |
Fan |
| 28 |  |
Interior lights |
| 29 |  |
Instrument cluster;Meter. |
| 30 |   |
Air conditioning system |
| 31 | DDE | Digital Diesel Electronics (DDE) |
| 32 |  |
Fuel pump relay;Fuel pump control. |
| 33 |  |
DME – Digital Engine Electronics;Integrated voltage module – IVM. |
| 34 |  |
BDC (Body Domain Controller) |
| 35 |  |
HiFi amplifier;TV tuner;
Video module. Radio (?). |
| 36 |  |
Tire pressure check RDV |
| 37 |  |
Windscreen washers |
| 38 |  |
Headlight washing system |
| 39 |  |
Sunroof;Panoramic glass;
Convertible top module. |
| 40 |  |
Telephone |
| 41 |  |
Convertible top module;Convertible relay. |
| 42 |  |
Front and rear cigarette lighter;12V socket;
Clipboard charging socket (12V). |
| 43 |  |
Parking brake |
| 44 |  |
Trunk lid (tailgate) lock;Automatic tailgate closing. |
| 45 |  |
Electric rear sun visor (for BMW F60 M5) |
| 46 |  |
Dynamic drive system |
| 47 |  |
4-wheel drive |
| 48 |  |
START-STOP system |
| 49 |  |
USB |
| 50 |  |
Hybrid system |
| 51 |  |
Sound system |
| 52 |  |
Electrochromic rearview mirror |
| 53 |  |
Air suspension compressor relay |
