Iveco Daily VI (2014-2021…) – fuse box
Iveco Daily VI – fuse box diagram
Year of production: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021.
The cigarette lighter fuses (power socket) on the Iveco Daily VI are fuses F7 and F16 in a box in the engine compartment.
Fuse box in the engine compartment
Fuses and contactors
Fuse / contactor | Description | Amperes [A] | Color |
---|---|---|---|
(F1) | Air suspension solenoid valves ( 60 – 70 qt ) | 40 | amber |
(F2) | 8 HP fan | 40 | amber |
(F3) | PTO | 30 | Green |
(F4) | Braking system (ESP) | 30 | Green |
(F5) | ECAS control unit and air suspension solenoids | 40 | amber |
(F6) | Mains fuses (F61) (F62) (F66) | 40 | amber |
(F7) | Electrical outlet;
Lighter; Heated seats. |
40 | amber |
(F8) | Fuel pump | 15 | Light blue |
(F9) | – | – | – |
(F10) | Heated exterior mirrors;
Heated windscreen. |
15 | Light blue |
(F11) | Main EDC loads from the main relay | 15 | Light blue |
(F14) | Main engine start relay | 10 | Red |
(F15) | Bosch cooling pump (for F1C Euro 5 engines) | 10 | Red |
(F16) | Lighter | 15 | Light blue |
(F17) | EDC secondary loads from the main relay | 10 | Red |
(F18) | Power take-off and EM | 15 | Light blue |
(F19) | – | – | – |
(F20) | Power take-off and EM | 15 | Light blue |
(F21) | – | – | – |
(F22) | Main EDC loads from the main relay | 25 | White |
(F23) | Wipers | 30 | Green |
(F24) | Power socket | 20 | Yellow |
(F30) | Side marker lamps / recessed connector | 5 | Beige |
(F60) | Seat heating | 20 | Green |
(F61) | Rear differential lock | 30 | Brown |
(F62) | Heated rear windows | 30 | Light blue |
(F63) | Air conditioning compressor;
Scavenge; ECAS control unit. |
10 | Red |
(F64) | Urea (for F1C Euro VI engines) | 15 | Beige |
(F65) | Urea (for F1C Euro VI engines) | 20 | Yellow |
(F66) | Headlight washers (versions with manual gearbox) | 15 | Light blue |
(F66) | Gearbox oil cooling fan (8HP automatic transmission versions) | 20 | Black |
(F67) | Trailer socket | 7.5 amps | Brown |
(F68) | Heated windscreen | 10 | Red |
(F69) | Heated mirrors | 7.5 amps | Brown |
(F77) | Heater (not VENDOR and VENDOR F1A versions) | 5 | Beige |
(F77) | Heated swing window | 15 | Beige |
(F78) | Trailer socket | 7.5 amps | Brown |
(F81) | – | – | – |
(F82) | Second Body Computer power supply | 70 | Beige |
(F83) | Cab internal fans | 40 | amber |
(F84) | Baruffaldi connector | 7.5 amps | Brown |
(F85) | Fuel filter and sediment filter heater | 25 | White |
(F87) | 8HP automatic gearbox control unit;
Motor controller; Vacuum sensor (Start & Stop). |
5 | Beige |
(T02) | Bosch cooling pump;Starter (Start & Stop). | 20 | Black |
(T03) | Marker lamps on the side | 20 | Black |
(T05) | Baruffaldi connector | 20 | Black |
(T06) | – | – | – |
(T07) | Ignition switch power discharge | 50 A. | Black |
(T08) | Fuel pump | 20 | Black |
(T09) | Main Relay | 30 | Red |
(T10) | Preventing engine starting;+50 signal to the Start & Stop system. | 30 | Red |
(T14) | Baruffaldi clutch (low speed) | 30 | Red |
(T17) | Windscreen wiper 1st and 2nd gear | 10 – 20 A. | Beige / Black |
(T19) | Windshield wiper on | 10 – 20 A. | Beige / Black |
(T20) | EOBD diagnostics | 20 | Black |
(T30) | Cab internal fans | 50 A. | Black |
(T31) | Fuel filter heater | 30 | Red |
(T49) | Urea or the Start & Stop system | 20 | Black |
(T50) | Heated windshield and mirrors | 20 | Black |
(T51) | Compressor activation from the air conditioner | 20 | Black |
(T52) | Heated rear windows | 30 | Red |
(T53) | Heater (not VENDOR and VENDOR F1A versions) | 20 | Black |
(T53) | Heated swing window | 20 | Black |
(T54) | Battery cut-off (safety relay) | 10 – 20 A. | Beige / Black |
(T55) | Battery cut-off (activation signaling) | 10 – 20 A. | Beige / Black |
(T56) | – | – | – |
(T64) | Headlight washers (manual gearbox) | 20 | Black |
(T64) | Gearbox oil cooling fan (8HP automatic transmission versions) | 30 | Red |
(T65) | 8HP automatic transmission fan | 10 – 20 A. | Beige / Black |

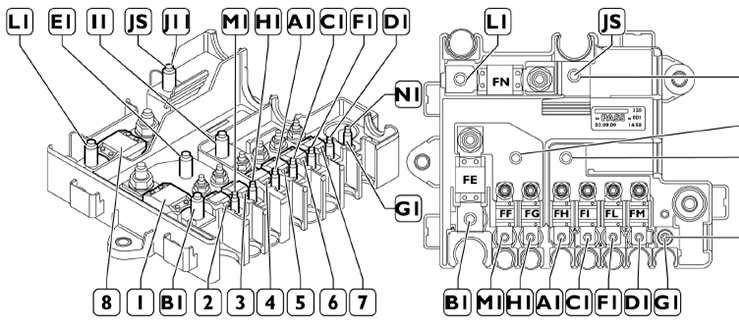

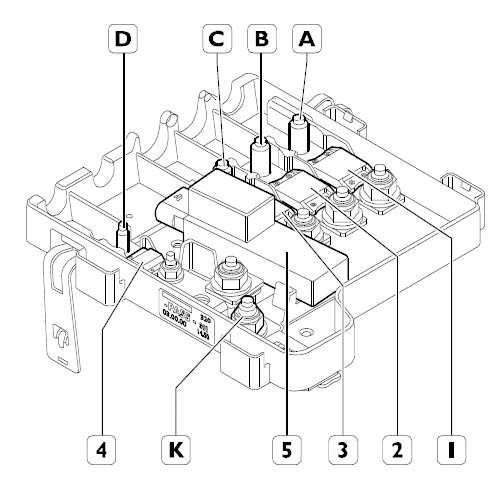

1 Fuse E (FE) Positive +30 for the SCM 150 control unit
2 F fuse (FF) Positive +30 for equipment installers 30 3 G fuse (FG) Positive +30 for equipment installers 30
4 (4 × 2) H fuse (FH) Positive +30 for preheating unit 60 4 (CNG) Free
5 (4 × 2) Fuse I (FI) Positive +30 for urea system 30 5 (CNG) Free
6 L (FL) fuse Positive +30 for the preheating resistor 100 7 M fuse (FM) Positive +30 for the ABS control unit 40
8 Fuse N (FN) Positive +30 for Telma 150 retarder control unit 8 (4 × 4) Free
