Volvo S80 (2001) – fuse box
Volvo S80 (2001) – fuse box diagram
Year of release: 2001.
Cigarette lighter Fuse (socket) Volvo S80 (2001) this is the fuse 13 in the dashboard switchboard.

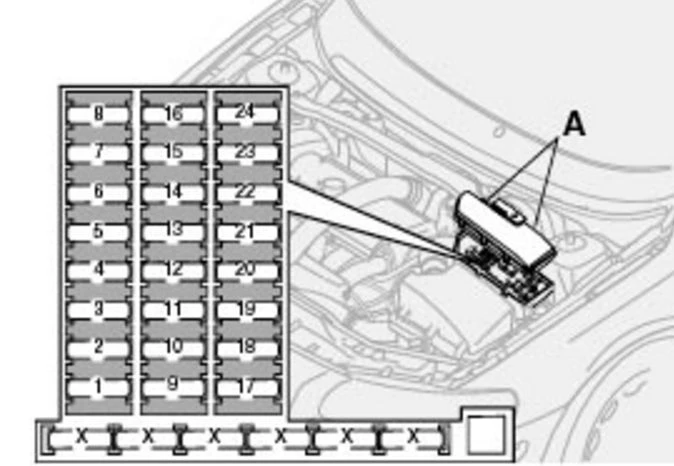

Fuse – engine compartment
| Number | Description | Amps [A] |
| 1 | Accessories | 25 |
| 2 | Additional headlights (optional) | 20 |
| 3 | – | – |
| 4 | Oxygen sensors | 20 |
| 5 | Crankcase ventilation heater;
Electromagnetic valves. |
10 |
| 6 | Mass air flow sensor;
Engine control unit; Injectors. |
15 |
| 7 | Throttle Body unit | 10 |
| 8 | Air Conditioning Compressor;
Accelerator pedal position sensor. |
10 |
| 9 | The horn | 15 |
| 10 | – | – |
| 11 | Air Conditioning Compressor;
Ignition coils. |
20 |
| 12 | Brake light switch | 5 |
| 13 | Windscreen wipers | 25 |
| 14 | – | – |
| 15 | – | – |
| 16 | Windscreen and headlight washers | 15 |
| 17 | – | – |
| 18 | – | – |
| 19 | ABS | 30 |
| 20 | – | – |
| 21 | – | – |
| 22 | Starter motor | 25 |
| 23 | Engine control unit | 5 |
| 24 | – | – |

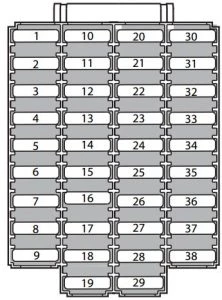

Fuses in the passenger compartment
| Number | Description | Amps [A] |
| 1 | Left low beam | 10 |
| 2 | Right low beam | 10 |
| 3 | Front lights | 15 |
| 4 | High beam | 20 |
| 5 | Electric driver’s seat | 30 |
| 6 | Electric front passenger seat | 30 |
| 7 | Heated seats front-left | 15 |
| 8 | Heated front seats-right | 15 |
| 9 | ABS | 5 |
| 10 | Left high beam | 15 |
| 11 | Right high beam | 15 |
| 12 | Of the windshield wiper of the headlights | 15 |
| 13 | 12 V Socket | 20 |
| 14 | Electric front passenger seat | 5 |
| 15 | Sound system | 5 |
| 16 | Sound system | 20 |
| 17 | Radio, amplifier | 30 |
| 18 | Front fog lights | 15 |
| 19 | VNS display (optional) | 15 |
| 20 | Cargo switch | 15 |
| Transmission module | ||
| 21 | – | – |
| 22 | Direction indicators | 20 |
| 23 | Headlight Switch module;
Electrical connection module; Air conditioning system; On-board diagnostic connector; Steering wheel lever modules. |
5 |
| 24 | Extended X-feed Relay:
air conditioning system; electrically operated driver’s seat; geartronic with gearshift lock. |
10 |
| 25 | Ignition switch, starter relay | 10 |
| 26 | Control unit-air conditioner compressor | 30 |
| 27 | Central locking system;
Power windows; Antifreeze; Lighting; Side mirrors; Light door alarm system; Side mirrors with electric adjustment. |
15 |
| 28 | Electric sunroof;
Additional lighting; Cosmetic mirror lighting. |
10 |
| 29 | Phone number (optional) | 10 |
| 30 | Left front and rear marker lights | 10 |
| 31 | Right front and rear marker lights;
License plate lighting. |
10 |
| 32 | Central electrical module;
Cosmetic Mirror Lighting; Additional interior lighting; Power steering. |
10 |
| 33 | Fuel Pump | 15 |
| 34 | Electric sunroof | 15 |
| 35 | Central locking system;
Power windows – front left. |
25 |
| 36 | Defroster, washer;
Lighting; Side mirrors; Central locking system; Power windows – front right. |
25 |
| 37 | Power windows – rear doors;
Child protection. |
30 |
| 38 | Alarm system siren | 5 |

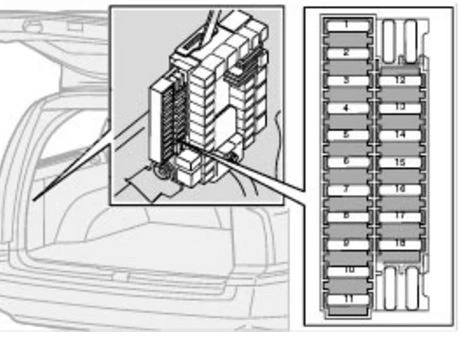

Fuses in the trunk
Fuses in the cargo compartment are located behind the panel on the driver’s side, in the cargo space
| Number | Description | Amps [A] |
| 1 | Rear electric module;
Trunk lighting. |
10 |
| 2 | Rear fog lights | 10 |
| 3 | Brake lights | 15 |
| 4 | Automatic copying | 10 |
| 5 | Heated rear window | 5 |
| 6 | Releasing the trunk | 10 |
| 7 | Folding rear head restraints | 10 |
| 8 | Rear doors with central locking system;
Fuel filler cap door. |
15 |
| 9 | Trailer (30) | 15 |
| 10 | CD changer;
VNS; The antenna. |
10 |
| 11 | – | – |
| 12 | – | – |
| 13 | – | – |
| 14 | – | – |
| 15 | Trailer (15) | 15 |
| 16 | – | – |
| 17 | – | – |
| 18 | – | – |
