Volvo XC90 (2011) – fuse box

Volvo XC90 (2011) – fuse box diagram

Year of production: 2011.

The cigarette lighter fuses  (power sockets) on the Volvo XC90  are fuse number 11 (12V sockets – front and rear seats) in the fuse box under the steering wheel and fuse number 8 (12V socket in the luggage compartment) in the fuse box in the luggage compartment.

Location of the fuse box

1) Relays / fuse box in engine compartment on right side.
2)  Fuse box in passenger compartment, under the steering wheel

This fuse box is located behind a plastic cover under the dashboard.

3)  Fuse box in the passenger compartment, on the edge of the dashboard

The fuses are located inside the access panel on the edge of the dashboard on the driver’s side.

4)  Fuse box in cargo area

These load compartment fuses are located behind the driver’s side panel in the cargo area.

5)  Auxiliary fuse box in cargo area (XC90 Executive)

Fuses in the engine compartment

Volvo XC90 – fuses – engine compartment
Number Description Amperes [A]
1 ABS 30
2 ABS 30
3 Headlight washers 35
4
5 Extra lights * 35
6 Starter relay 25
7 Wipers 15
8 Fuel pump 15
9 Transmission control module (V8 and 6-cyl.) 15
10 Ignition coils;

Engine control module.

20
11 Gas pedal sensor;

Air conditioning compressor;

E-box fan.

10
12 Engine control module;Fuel injectors;

Mass air flow sensor.

15
13 Throttle control (V8);

Intake manifold actuator (6-cylinder).

10
14 Heated oxygen sensor 20
15 Crankcase ventilation;

Solenoid valves;

Air conditioning connection;

Leak diagnostics;

Engine control module (V8, 6-cylinder);

Air mass sensor (V8).

15
16 Driver’s side dipped beam headlamp 20
17 Passenger side dipped beam headlamps 20
18
19 Engine control module power, engine relay 5
20 Parking lights 15
21 Vacuum pump 20
READ:  Volvo S80 (2007) - fuse box

Fuses in the passenger compartment on the edge of the dashboard

The fuses are located inside the access panel on the edge of the dash on the driver’s side

Volvo XC90 – Fuses – Passenger Compartment (edge ​​of dashboard)
Number Description Amperes [A]
1 Blower – heating system 30
2 Sound amplifier * 30
3 Powered driver seat * 25
4 Passenger electric seat * 25
5 Driver’s door – central locking, power windows, exterior mirror 25
6 Front passenger door – central locking, power windows, exterior mirror 25
7
8 Radio;

CD player;

Rear Seat Entertainment (RSE) *.

15
9 Volvo * navigation system;

SiriusXM ™ Satellite Radio *.

10
10 On-board diagnostics;

Light switch;

Steering angle sensor;

Steering wheel module.

5
11 Ignition switch;

SRS;

Engine control module (V8, 6-cylinder);

Immobilizer;

Transmission control module (V8, 6-cylinder).

7.5
12 Ceiling lighting;

Top electronic control module.

10
13 Sunroof * 15
14 Bluetooth hands-free kit 5
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
READ:  Volvo XC60 (2009-2010) - fuse box

Fuse box in passenger compartment, behind plastic cover, driver’s side

This fuse box is located behind the plastic cover under the steering wheel.

Volvo XC90 – Fuses – Passenger Compartment (Behind the plastic cover on the driver’s side)
Number Description Amperes [A]
1 Heated passenger seat * 15
2 Heated driver’s seat * 15
3 Horn 15
4
5 Sound system 10
6
7
8 Alarm siren * 5
9 Brake light switch power supply 5
10 Instrument panel;

Air conditioning system;

Electrically operated driver’s seat;

Passenger weight sensor.

10
11 12 V sockets – front and rear seats;

Fridge * (XC90 Executive).

15
12
13
14
15 ABS, DSTC 5
16 Power steering;

Active cornering lights *.

10
17 Front fog lamp, driver’s side * 7.5
18 Front fog light, passenger side * 7.5
19
20 Coolant pump (V8) 5
21 Transmission control module 1 10
22 Main beam, driver’s side 1 10
23 Main beam on the passenger side 10
24
25
26
27
28 Passenger electric seat * 5
29
30 Blind Spot Information System * 5
31
32
33 Vacuum pump 20
34 Pump – windscreen and rear window washers 15
35
36

Fuses in the trunk

The fuses in the cargo area are located behind the driver’s side panel in the cargo area.

Volvo XC90 – fuses – cargo compartment
Number Description Amperes [A]
1 Backup lights 10
2 Parking lights;

Fog lights;

Cargo compartment lighting;

Number plate lighting;

Brake light diodes.

20
3 Accessories 15
4
5 Rear electronic module 10
6 Rear entertainment system (accessory) 7.5
7 Rear entertainment system (accessory) 15
8 12 V socket in the luggage compartment 15
9 Rear passenger’s side door – window lifting, window switch-off function 20
10 Driver’s side rear door – window lifter, window switch-off function 20
11
12
13
14 Subwoofer *;

Rear air conditioning *.

15
15
16
17 Audio accessories 5
18
19 Rear window wiper 15
20 Trailer Wiring (15 Core) * 20
21
22
23 Parking assistant 7.5
24
25
26 Parking assistant * 5
27 Main fuse: trailer wiring, parking assistant, all-wheel drive 30
28 Central lock 15
29 Trailer lighting on driver’s side: parking lamps, turn signals * 25
30 Trailer light on passenger side: brake light, rear fog light, direction indicator * 25
31 Main fuse: fuses 37 and 38 40
32
33
34
35
36
37 Heated rear window 20
38 Heated rear window 20
READ:  Volvo S80 (2009) - fuse box

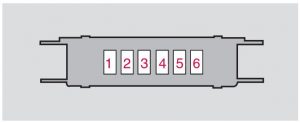

Additional fuses in the trunk (XC90 Executive *)

The fuses in the cargo area are located behind the driver’s side panel in the cargo area.

Volvo XC90 – Fuses – Load Compartment (Extra Fuses)
Number Description Amperes [A]
1 Rear seat heating and front seat massage relays 5
2 Rear seat heating, driver’s side 15
3 Rear seat heating, passenger’s side 15
4 Front seat ventilation / massage 10
5
6
